Quick Basics

On the Ground

• Main Screen
• Instant Action Screen
• Single Mission Screen
• Campaign Screen
• Hangar Screen
• Loadout Screen
• Planning Map Screen
• Pilot Roster Screen
• Debrief Screen
• Pilot Record Screen
• Options Screen
  • Gameplay
  • Graphics
  • Sound
  • Control

In the Air

• Flight Basics
• Mission Types
• Cockpit Instruments
• Using the Radar
• Combat Basics
• Basic Maneuvers
• Using the Gunsight
• Using Air-to-Air Missiles
• Using Air-to-Ground Missiles

Player Aircraft

• F-100 Super Sabre
• A-4 Skyhawk
• F-4 Phantom II

Non-Player Aircraft

• Enemy Fighters
• Other Enemy Aircraft
• Friendly Aircraft

Player Weapons

• Air-to-Air
• Air-to-Ground

Campaign Background

• Burning Sands Campaign
• Additional Campaigns

Default Key Commands

• In-flight Keyboard Commands
• View Commands
• Flight Control Commands
• Weapons Commands
• Radar Commands
• Visual Targeting Commands

Quick Basics

This section provides a short introduction to the major tasks involved with taking off, finding your target, hitting it, and making a successful landing. If you're new to flight simulations, these instructions will help you get started. Even if you're a veteran, you'll find some of the commands in this section useful.

For a complete list of commands, see Default Key Commands at the end of this manual.

Taking Off

By default, you start the game in the air. However, you can change the Mission Start Position setting in the Gameplay Options Screen to start on the runway.

Taking off is relatively simple. Once you receive clearance from the tower, you're ready.

1. Check to make sure the flaps are partially extended for take-off. If not, extend the flap to Take-off setting (press F once).
2. Power up your engine to 100% thrust (press =).
3. Release the wheel brakes (press B).
4. Keep the nose pointed straight ahead using the rudder keys (comma (,) and period (.) keys).
5. As you approach the end of the runway, pull back gently on the joystick to lift the nosewheel off the ground at about a 10% angle.
6. After the aircraft lifts off the runway and you start climbing, raise the landing gear (press G).

Navigating

Finding your way around is fairly easy through the use of the Head-Up Display (HUD). This section assumes that all Gameplay options are set to Easy or Normal; for Hard settings, you may need to rely on bearings and cockpit instruments to find your next waypoint.

Your waypoints show up in the Planning Map before the mission. During flight, your next waypoint shows up either as a white triangle in your forward view, or as a white cone on the perimeter of your screen. Steer towards it to maneuver to the next waypoint. Note that you always have a preliminary waypoint just before the target area or rendezvous point, and just before landing.

You can select the next or previous waypoint to switch them in mid-mission. Be aware that violating the planned flight path can consume precious fuel.

Targeting

Your next order of business is to find and lock onto a target. You can do this either by bringing a target into view or using your radar. For guided weapons that require a radar lock, you must acquire a target prior to firing weapons. Even your gunsight relies on your aircraft's targeting system to compensate for range and motion.

Visual Targeting

You can select any target you can see out of the front view. A selected target appears in square brackets on the HUD. If the target moves out of view, a cone appears to "point" you toward your current target.

Radar Targeting

If you have advanced Radar option enabled, and if your aircraft is equipped with a radar, you can also use the radar to search and track targets beyond visual range. More specifics of radar usages are covered in Using the Radar.

Using a Weapon

After you have something targeted, you're ready to fire your gun, missile, or rocket or ready to drop your bomb. Before you can do so, however, you must select a weapon.

Some weapons require a radar lock, and until it is achieved, you won't be able to fire the guided weapon. Some heat seeking missiles will sound an audible tone when locked on. You do not have to keep the target in view after launch to hit targets with heat seeking weapons.

For radar-guided weapons, you must wait to fire until you see a solid yellow diamond over the target in the HUD. Whenever you launch a radar-guided weapon, remember that you must keep the target within the cone of your radar's view to maintain the lock.

Weapons such as rockets and forward guns don't require a lock and can be fired whenever you want. Your gunsight is somewhat automated and can help you aim. Just place the red gun reticle over the target and fire at will. The system will automatically compensate for your target's range and help you "lead" the bullets into his path.

Ending Mission

You may end the mission at any time by pressing ESC key. However, if you end the mission before your mission is accomplished, it will be recorded as a failed mission.

You may, of course, choose to continue to fly back to your home base and attempt landing.

Landing

Landing is a bit trickier than taking off because you must control both your angle, descent rate and speed. The main instruments you need to observe are the airspeed indicator, altimeter and vertical velocity indicator. Jets land at a high rate of speed, and swept-wing aircraft in particular don't generate a lot of lift at steep angles of attack.

In general, here's what you need to do to land:

1. As you approach the second-to-last waypoint, begin your lineup with the runway.
2. On approach, begin gently reducing your throttle setting to 25% (press -).
3. Press F twice to fully extend your flaps and gain extra lift.
4. Press G to lower your landing gear.
5. Keep the nose angled up at about a 10 to 15degree angle.
6. Keep your airspeed between approximately 150 and 200 knots and stay on course with the runway. You should descend at about 500 or 600 feet per minute.
   a. If you need to slow down, pull back slightly on the stick to raise the nose.
   b. If you need to speed up, lower the nose slightly.
   c. If you need to increase your descent rate, reduce the throttle. Conversely, increase the throttle to decrease the descent rate.
   d. You can also temporarily apply the airbrake to slow down (press S to toggle it).
   e. If you run into real problems, switch on autopilot for a safe landing (press A).
7. At about 100 feet above the runway, flare by pulling back gently on the stick. This lowers the rate of descent and executes a soft landing. (Be careful, as raising the nose too high may result in the engine nozzle hitting the ground first!)
8. After touchdown, reduce throttle to 0% (press -).
9. Engage the wheel brakes (press B).
10. Press ESC to end the mission.

On the Ground

Every successful mission starts with a good plan. Strike Fighters Gold offers a variety of entertaining mission types, including instant action, single missions, and full campaigns. But before you rush to suit up and get off the ground, you've got to properly equip your aircraft for the task at hand.

Your journey into the skies starts on the ground, beginning with the Main Screen. From there, you select a pilot (except for Instant Action) and a mission type. After you study the mission briefing, you can then memorize your waypoint route and outfit your bird with fuel, bombs, missiles and guns. Finally, you'll be ready to take on the best strategic maneuvers your foes have to offer.

Main Screen

The first thing you see when you start the game is the Main Screen. Here, you select what type of mission you want to fly. You can also view statistics for the current pilot or another pilot you've previously saved.

The Main Screen lists the following options. Click a button to access that screen.

Instant Action	Jump immediately into flight in a randomly generated mission.
Single Mission	Load a historical mission, or configure a new mission and fly it.
Campaign	Load the currently active pilot and campaign, or start a new campaign with a different pilot.
Pilot Record	View vital statistics for all of your saved pilots, or create a new pilot to man your aircraft
Options	Set options for gameplay, graphics, sound, controls, network and other miscellaneous options.
Exit	Closes the game.
	Displays a small menu that allows you to view other screens, see the credits, and quit the game. The small green aircraft icon in the upper left corner appears on every base screen and has quick links to the Main Screen, Pilot Record Screen and Options Screen. You can also select Quit to close the game.

Instant Action Screen

Jump into the cockpit and quickly engage enemy targets in an Instant Action mission.

When you select Instant Action from the Main Screen, you immediately find yourself high in the air near enemy territory. In some cases, you may even find yourself doggedly evading a bandit who's on your tail. With an Instant Action mission, you don't get to choose your aircraft, enemies, or setting - it's a surprise each and every time you enter battle. You also don't have to deal with takeoffs and landings.

At the end of each Instant Mission - after winning, crashing, or dying - you see the Debrief Screen.

Single Mission Screen

Create and fly randomly generated missions, or fly historical missions.

When you click Single Mission in the Main Screen, you're able to select a specific set some parameters for the mission. Another difference between a Single and Instant Mission is that the results of Single Missions are saved to your pilot's permanent record.

You have several options in the Single Mission Screen. The left side of the file folder shows two buttons, and the right side displays the parameters for the selected subscreen.

New Mission Parameters

Setting different mission parameters can drastically affect the difficulty of a mission. For instance, it's going to be harder to fly a reconnaissance mission when there is heavy enemy air activity, and if you want to up the ante for your pilot, try setting up heavy enemy air activity and heavy enemy air-defense activity.

You can alter the following options for a new Single Mission:

Campaign Screen

Participate in a full-length war and fly dynamic campaign missions.

The Campaign Screen allows you to start a new campaign mission series, or load an existing campaign that you've created. Once you begin a new campaign, you can't change the pilot you're using for that particular campaign. However, you can start a new campaign with a different pilot.

Two buttons appear on the left side of the screen. When you select one, the right-hand page changes to reflect your chosen option.

New Campaign Parameters

When you opt to create a new campaign, you can set the following options:

Hangar Screen

The Hangar Screen is your pre-flight area. From this area you can review the mission briefing, alter your aircraft's ordnance loadout, view and adjust your mission waypoints, and select a pilot for the mission. The main Hangar Screen page shows the mission briefing. Along with your squadron, callsign and aircraft information, it also displays the current date (in game time). Planned takeoff, target arrival and landing times for the mission appear as well in 24-hour military time.

The Hangar Screen contains six buttons, four of which activate subscreens.

Loadout Screen

In the Loadout Screen, you equip your aircraft with ordnance appropriate for the selected or assigned mission type, whether it's a Single Mission or the next mission in a Campaign game. (See Mission Types for information about different types of missions you can fly in the game.) You can view or configure your own aircraft, as well as that of your wingman and any other aircraft flying with you.

The functionality of this screen differs slightly depending on what type of mission you're flying and what branch of the military you choose. Single Missions allow you a little more flexibility than Campaign Missions, since your aircraft, callsign, squadron alignment and aircraft appearance are configurable. (These items are not editable for a Campaign mission.)

The top right side of the screen has a number of drop-down lists. The lower right side of the screen details the current aircraft weight (calculated by adding the fuel, ammunition and external weapon weights to the raw weight of the aircraft).

You can set the following options in the Loadout Screen for all aircraft involved in your flight. When you're finished with all of the loadouts, click EXIT to return to the Hangar Screen. When you re-enter the Loadout Screen, the settings for your aircraft display by default.

Planning Map Screen

The Planning Map Screen shows an overhead view of the mission area, complete with color-coded icons that represent friendly and enemy units. You should use this screen to become familiar with the navigation layout of the mission, the enemy line, and the type and number of known foes.

The map shows the following elements of information for each mission. You can click-and-drag anywhere on the map to scroll in any direction.

Info Display Area	Displays basic information about the mission, target area and base. This area also displays waypoint and unit information, as described below.
	Blue icons represent friendly air and ground units, and red icons denote enemy units. The type of unit appears as an image on top of the icon. When you move the cursor over a friendly or enemy unit icon, known information about that unit appears on the Info Display Area, including the unit type, number of units and home base. As you win more Campaign missions and gather more intelligence, you'll be able to spot more targets and view more information about them in this screen.
	The small yellow triangles indicate waypoints for your flight. All aircraft flying with you follow these waypoints. Although the set waypoints are optimal for the mission, you can click-and-drag these waypoints to different locations. Be aware that extending the mission path requires additional fuel. Whenever you move the mouse pointer over a waypoint triangle, details about that navigation point appear on the Info Display Area.
Battle line	The red, jagged line on the terrain indicates the front line of battle. As you progress through the Campaign, this line will move to reflect your success or failure.
Target area	The black circle surrounds the area containing the main mission target. If you're having trouble winning a particular mission, you can try entering the target area from a different point.
	The magnifying glass icons allow you to zoom the map view in (+) and out (-). The icon with the dashed outline re-centers the map over the target area.
EXIT	Returns you to the Hangar Screen.

Pilot Roster Screen

The Pilot Roster screen lists the current game date, as well as the type of aircraft being flown and the names of all pilots involved in the current flight. Pertinent information about each pilot's experience, success and current condition also appears here.

Click EXIT to return to the Hangar Screen.

The following information displays for each pilot:

Debrief Screen

Anytime you complete a mission, die, or press ESC, the Debrief Screen appears. From here you can view your score for the mission, the length of the mission, the success/failure message and a Top 10 score list. You will also view any new medals you receive as a result of earning points for that mission.

You have several other options in this screen. From any other post-mission screen, you can click Debrief at any time to return to the mission summary.

Pilot Record Screen

View detailed pilot records containing a complete history and statistics for your pilot.

This screen shows a detailed record for the currently selected pilot.

Pilot Statistics

The rank, score, ratings and missions that appear in the right-hand box reflect the pilot's accumulated scores.

The following stats appear for the selected pilot:

Options Screen

Adjust various game settings such as gameplay, graphics, sound and controls options.

You can change many of the game's options by setting them in the Options Screen. To access the options from anywhere in the game prior to flight, simply click the green aircraft icon in the upper left corner of the screen, and then click Options.

Note: You cannot reset options while you're airborne.

You have access to four Option Screens - Gameplay, Graphics, Sound, and Control. Click on the name of a section to jump to that option category.

EXIT Takes you back to whichever screen you were in prior to accessing the Options Screen.

Gameplay

The Gameplay subscreen lets you change difficulty settings that affect how hard or easy the game is to play.

Graphics

The Graphics subscreen allows you to change options that affect video settings. In general, the fewer textures and less detail you specify, the better the game performance. Older, slower machines operate best at lower graphical settings. If you have a top-end system, you can leave everything on the highest setting and enjoy increased video quality.

Medium settings are generally recommended for machines that meet the minimum system requirements. However, if the video is jerky or slow, try disabling some of these settings or lowering the detail levels.

Sound

The Sound subscreen lets you change audio options for the game and any external speakers you have attached to your computer.

To adjust the volume slider bars, click on the desired part of the bar. You can also click-and-drag the slider left to reduce volume, or right to increase volume.

Control

The Control subscreen lets you adjust your joystick's sensitivity and deadzone settings.

In the Air

This section covers the basic forces that operate on your aircraft, gives an overview of the cockpit and its instruments, illustrates some basic combat maneuvers and how to use weapons, as well as providing details about all the aircraft found in the game.

Flight Basics

Forces

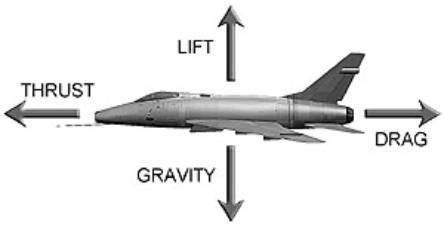

Four forces operate on all aircraft: lift, gravity, thrust and drag. It is the combination of these forces that allows a plane to fly.

Lift keeps an aircraft airborne, and is mostly generated by airflow over and under the wings. A lot of factors are involved in how much lift is present at any given moment, including a plane's airspeed, the shape and position of its wings and their angle of attack. Gravity, on the other hand, is always constant and is the force counteracting lift, trying to pull an aircraft straight towards earth, no matter its orientation. The balance between these two determines whether an aircraft ascends or descends in level flight.

Thrust propels an aircraft forwards and is adjustable by throttle. In jets it is generated by turbojet engines and afterburners, if so equipped. It is counteracted by drag, the amount of friction a plane's shape must overcome when flying through the air. Thrust and drag are affected by a number of factors, including air density, variable at different altitudes.

Axes of Movement and Controls

Aircraft have three axes of movement: pitch, roll and yaw. Each has a corresponding flight control surface. Sufficient airflow over these control surfaces allows a pilot to "steer" a plane in an individual or a combination of axes.

Pitch is the angle of the nose of a plane relative to the ground and is controlled by an elevator or an all-moving horizontal stabilizer (found to be more effective as aircraft approached high subsonic and supersonic speeds). Elevators and moving tail surfaces are found at the rear of an aircraft and are controlled by pushing the flight control stick forward or pulling it backward. This is the quickest and most effective way to make your plane's nose point up or down.

Roll is a rotating movement on the longitudinal axis running through the center of a plane from front to back, also known as bank. When an aircraft banks, one wing rises or lowers relative to the other. Roll is operated by ailerons, found on the trailing edge of each wing. These are activated by pushing the flight stick from side to side. If you want to change your aspect from right side up to inverted - or any position in between - use the ailerons.

Yaw is movement of the nose on a horizontal plane, much like the steering of a car. Yaw is controlled by the rudder, a vertical airfoil found on the tail of a plane. It is operated by a set of pedals, which also control the nose wheel when on the ground. In aircraft with a high sweepback to the wings, the rudder can also be used to initiate roll when the wings are at a high angle of attack and ailerons prove ineffective.

Inertia

Following Newton's First Law of Motion, which states that "an object at rest tends to stay at rest and an object in motion tends to stay in motion," objects also naturally resist a change of state to their motion (velocity); this resistance is called inertia. The more mass that an object has, the greater the effect of inertia. How this applies to aircraft is that they will tend to resist a change to their path of movement, despite the pilot moving the controls. That is, the vehicle's momentum will want to continue to carry it along its center of mass's original path. While an aircraft's orientation in space may change, its actual flight path may lag behind where the aircraft is pointing, and it can take a while for the plane to "catch up" to its new heading. The higher the velocity, and the greater the mass, the more evident this is. Unless you have chosen to use the Easy flight model, remember that an aircraft isn't like a train on rails that will instantaneously go exactly where it's pointed. You have to take into account its inertia. This is especially important if you are planning on making wild maneuvers with a full bomb load or at high speeds!

Angle of Attack

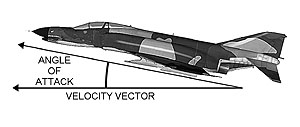

On the pitch axis, the difference between where the nose is pointed and where the plane is actually traveling (its velocity vector) is called the Angle of Attack (AoA). Often times even when the nose appears level with the horizon the aircraft may still be ascending or descending according to how much lift is being generated by the wings.

By increasing the angle of attack, both more lift (up to a point!) and more drag are generated. Unfortunately, this added drag will have a degenerative effect on speed, and this in turn decreases lift. The deceleration can be counteracted by applying more throttle if there is more power available and, when used on the vertical plane, thrust combined with lift can overcome the force of gravity. As you can imagine, it's all a delicate balancing act!

Slip Angle

On the yaw axis, the difference between where the nose is pointing and where the plane is actually traveling is known as the slip angle. Having a high slip angle greatly increases drag, as airflow slams into the side of the aircraft rather than parting around it. In combat it can sometimes be useful to momentarily have a high slip angle to bring the nose to bear on a target.

Lift Vector

Lift is generated by wings at an angle roughly perpendicular to where they attach to the aircraft, originating from its center of mass. The direction in which lift occurs is called the lift vector. In level flight this is straight up, away from the ground, and directly opposite to the force of gravity. By rotating on the roll axis, the lift vector no longer remains in precise opposition to gravity, and the balance between the two is disturbed. With less lift opposing gravity, the plane naturally loses altitude. In flight pilots often anticipate and counter this loss by pointing the nose slightly above the horizon when banking. The degree to which the lift vector varies from the direct opposite of the force of gravity is called the bank angle.

Stalls

Stalls occur when there is not enough airflow over the wings to generate lift. The higher an aircraft's speed, the more lift it creates; conversely, the slower it travels, the less it generates. Eventually, it can slow down enough that lift no longer counteracts the force of gravity, and the plane will simply drop. This is known as a low speed stall and the velocity at which it happens will vary between designs of aircraft. The only way to recover from such a situation is to increase speed so that lift can once again be generated by the wings. A low speed stall close to the ground can be especially deadly, since there may not be enough time or altitude to recover.

Stalls can also occur at high speeds. Generally speaking, the greater a wing's angle of attack, the more lift it generates. There comes a point, however, where the angle of the wing is sufficiently steep that airflow over it becomes disrupted and so turbulent so that the wing can longer create lift, despite a high velocity. This is known as a high speed or an accelerated stall. Easing off back pressure on the stick, thereby decreasing the angle of attack of the wing, will allow proper airflow to once again resume and lift will be restored. High speed stalls most often happen during violent maneuvers.

Sweptback Wings

Many of the fighter planes modeled in Strike Fighters Gold have a high sweepback to the wings. Sweepback was first utilized by the Germans during WWII with their revolutionary Me-262 jet fighter, and it was subsequently discovered to be vital for aircraft that would be traveling at high subsonic and supersonic speeds. Highly swept wings require a higher angle of attack to produce the same lift as straight wings, but this is a fair trade-off for the higher speeds they allow. They also don't share the same stall characteristics. As they reach higher and higher angles of attack, the rate at which lift increases actually declines; finally, lift itself actually decreases without the sharp break that happens with traditional wings. Furthermore, at particularly high angles of attack, the rolling effect produced by ailerons is significantly reduced and can actually create adverse yaw effects that can only barely be countered by the rudder. Therefore, in this particular situation, using the rudder and sideslipping creates more roll and proves more effective than using the ailerons, known as "dihedral effect."

Mission Types

Fighter Sweep

Fighter sweeps are the most basic type of sortie for combat aircraft. They are an offensive mission by fighters to seek out and destroy enemy aircraft or targets of opportunity in a specified area. There are normally no assigned goals, except to exert influence over a region and to maintain air superiority.

Combat Air Patrol (CAP)

Combat Air Patrols involve flying within a dedicated area and remaining on the lookout for incoming enemy air threats. Aircraft are not allowed to stray too far from their assigned waypoints, and often have to loiter for long periods of time. Any hostile aircraft that enter the CAP area are to be destroyed before they can reach their targets.

Intercept

Intercepts are defensive missions with the goal of engaging specific aerial threats that have been identified by friendly forces. Planes are vectored to close in on hostile aircraft, often heavily laden with bombs or Air-to- Ground ordnance, and are to prevent them from reaching their targets.

Escort

Escorts are fighters that have been tasked to stay close to and defend friendly aircraft from hostile air attacks. Escorted aircraft are often strike fighters or bombers, and escorts usually fly in close formation with them. The goal of an escort mission is not to destroy enemies, but to protect the assigned aircraft. Convincing enemy fighters to break off an attack is a key ingredient of a successful escort mission.

Strike

Strike missions involve attacking enemy surface targets either in close support of ground forces or to knock out defenses and other targets deep behind enemy lines. Specific Air-to-Ground ordnance suitable for the target is almost always required and is only to be jettisoned when directly attacked, likely preventing any possibility of mission success.

Close Air Support (CAS)

Close Air Support means to engage enemy ground units close to, and in support of, friendly ground forces from the air. CAS missions are often directed by Forward Air Controllers (FAC) and are closely integrated with friendly ground unit's own movement and fire. CAS can be both defensive or offensive, and great care is required as friendlies will be operating near targets.

Suppression of Enemy Air Defense (SEAD)

The targets of air defense suppression missions are enemy ground positions that pose a threat to friendly aircraft in a specific area. Threats may be Surface-to-Air missiles sites (SAMs) or AAA units. Knocking out these defenses is vital to allow friendly air forces to operate with impunity, and SEAD aircraft are often the first to arrive over a target area and the last to leave. They are usually the most demanding missions.

Armed Reconnaissance

Sometimes referred to as Search and Destroy missions, the primary goal of Armed Reconnaissance is to find and attack targets of opportunity. Mission orders are not specific and any hostile forces within the assigned area should be considered legitimate targets, including all types of mobile equipment.

Anti-Ship

Much like Strike missions, Anti-Ship missions involve attacking and destroying ground targets - in this case, hostile watercraft. Enemy defenses on anti-ship missions can vary tremendously, depending on the nature of the target.

Reconnaissance

Reconnaissance missions are usually non-combative to discover and report on enemy positions. This information used for subsequent attacks or to prepare defenses.

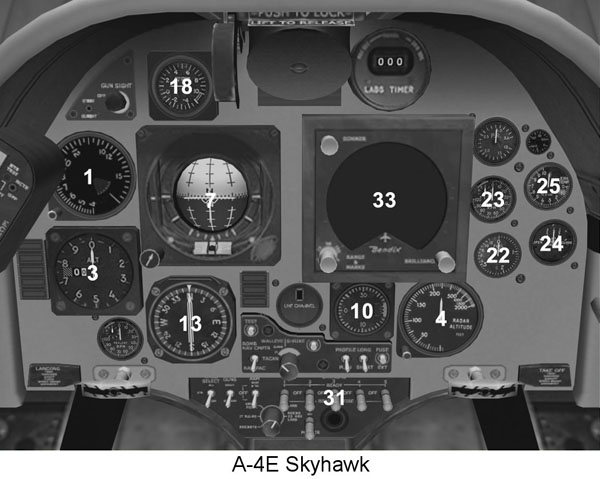

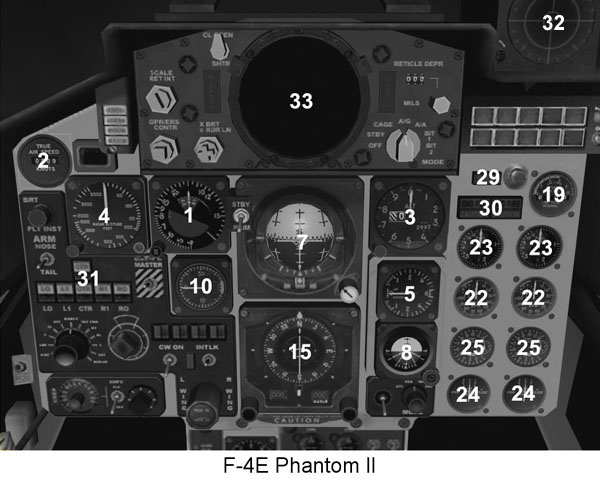

Cockpit Instruments

All of the flyable aircraft modeled in Strike Fighters Gold share many of the same cockpit instruments. While they may differ slightly in appearance, they function in much the same way, as explained below. The following list is of the basic instruments needed to play the game, and most aircraft will actually have more than presented here.

1. Airspeed and Mach Number Indicator
A combination airspeed and Mach number indicator. On the F-100 and A-4, the needle displays the Indicated Air Speed (IAS) in knots on the outside wheel, and an inner dial shows Mach number. The F-4's airspeed indicator is divided into two parts: the right hand side of the gauge measures airspeed up to roughly 200 knots, and the numerals on the left hand indicate a percentage of Mach by tenths. The speed of sound varies according to air density and therefore altitude.

2. True Airspeed Indicator
A measure of the aircraft's true airspeed (TAS) rather than its indicated airspeed (IAS). TAS is velocity through space, while IAS is a measure of airflow, variable by air density and wind conditions.

3. Altimeter
The altimeter measures altitude above sea level via barometric pressure.

4. Radar Altimeter
This gauge indicates feet about ground level as measured by a radar return.

5. Vertical Velocity Indicator (VVI)
Also known as a Vertical Speed Indicator (VSI), the VVI measures a gain or loss of altitude by hundreds of feet per minute. Numbers on the top of the gauge indicate a climb, numbers on the bottom a descent.

6. Attitude Indicator
Sometimes called a Horizon Ball, this gauge shows the aircraft's orientation relative to the horizon with the sky shown as light blue. Horizontal white lines show pitch in degrees of ten, and fixed hash marks to the outside are used to measure bank angle.

7. Attitude Director Indicator
This instrument works similarly to the Attitude Indicator, but has more detailed information, including a heading reference scale, bank indicator and a turn and slip indicator.

8. Standby Attitude Indicator
A secondary Attitude Indicator in case the first fails.

9. Turn-and-Slip Indicator
This instrument measures bank angle and sliding on the yaw axis.

10. Angle-of-Attack Indicator
A measure of the pitch of the aircraft as divergent from its actual flight path. In other words, it compares the difference between the flight path and the actual pitch.

11. Heading Indicator
A rotating compass card viewed top down.

12. Standby Compass
A secondary compass in case others fail.

13. Radio Magnetic Indicator
Navigational equipment available on the A-4 and F-100, this instrument contains a fixed compass card with two rotating pointers. The wide pointer indicates the ground track (heading) of the aircraft, and the narrow pointer indicates bearing to the next waypoint.

14. Position and Homing Indicator (PHI)
The PHI is a basic navigation tool. Consisting primarily of a rotating compass card, it also has a pointer marking the correct bearing to the next waypoint and digital numerals to show the range to it in nautical miles.

15. Horizontal Situation Indicator (HIS)
Found in the F-4 Phantom II, the HIS is a more sophisticated navigation tool. The large pointer just outside of the rotating compass card shows the correct bearing to the next waypoint from the current position. The long arrow bisecting the entire gauge shows the course from the previous waypoint to the next waypoint. The digital numerals on the left, bottom side of the gauge measure range to the next waypoint in nautical miles. Lastly, the innermost component measures current course deviation from the line between the previous to next waypoint.

16. Range Indicator
A basic gauge showing range to the next waypoint in nautical miles.

17. Clock
A timepiece set to local time.

18. Accelerometer
This measures the amount of G forces acting on the aircraft.

19. Internal Fuel Quantity Indicator
A measure of available fuel in all internal tanks.

20. External Fuel Indicator
A measure of available fuel in external tank(s).

21. Total Fuel Quantity Indicator
A measure of total fuel remaining.

22. Fuel Flow Indicator
A measure of the amount of fuel flow at the current throttle setting (and therefore, consumption).

23. Tachometer
An indicator of engine revolutions per minute, measured as a percentage of total allowable RPM.

24. Engine Nozzle Position Indicator
A gauge to indicate the current aperture of the jet nozzle.

25. Exhaust Gas Temperature Gauge
A measure of the heat of the exhaust from the jet engine. Excessively high heat can indicate an engine malfunction or engine overuse at high settings.

26. Oil Pressure Gauge
An indicator of oil pressure in the engine. An overly low reading signifies a malfunction.

27. Oil Quantity Indictor
A measure of the amount of oil present in the oil receptacle. A low reading could signify a leak, or an overly hot engine. An engine that runs with too little oil will sustain damage and may stop functioning altogether.

28. Hydraulic Pressure Gauge
A measure of the pressure of hydraulic fluids that are used to move control surfaces. A low reading could mean reduced or total loss of control of any or all of the ailerons, elevator and rudder.

29. Caution Light
A master warning light signifying a general malfunction. Check all gauges and systems if lit.

30. Fire Warning Light
An indicator of a fire in the engine.

31. Armament Control Panel
A weapons panel to indicate status of weapons and related systems.

32. Radar Warning Receiver (RWR)
The RWR can detect, identify and characterize radar signals 360 degrees around the plane, displaying threat type and the relative bearing. It can also identify if the threatening radar is in search mode or is tracking the aircraft.

33. Radar Scope
Displays the radar image.

Using the Radar on F-4

Possibly the most complicated instrument in the cockpit, the radar can be placed in standby mode to avoid detection by hostile forces and leaving it on for prolonged periods may increase the chance of malfunction. There are four selectable modes of operation: Search, Boresight, Ground Map and Terrain Avoidance. Acquisition and Track modes are modes operated automatically by the radar system.

Not all aircraft in game have radar on board, and not all radar have the same capabilities. The F-4 radar has a maximum search range of 200 miles and a track range of 50 miles; The A-4 radar has Ground Map and Terrain Avoidance modes only.

Search Mode

In Search mode the radar antenna sweeps the sky in front of the aircraft, displayed as a vertical line (B-sweep) tracing across the scope. The range can be set to 10, 25, 50, 100 or 200 miles in the F-4. Longer range settings also scan a greater arc vertically. Targets are displayed as a momentary blip on the B-sweep, and a bracketed acquisition bar can be manually cycled through all targets on the scope when the display range selected is within the radar's track range. The radar system can then be ordered to attempt to lock on and track the target with the acquisition symbol, at which point the system will automatically transition to Acquisition mode.

Boresight Mode

Rather than sweeping, in Boresight mode the radar antenna is fixed on a reference line directly ahead of the aircraft. Any target within +/- 3 degrees of the CAGE gunsight circle is detected, and the radar will automatically go into Acquisition mode to attempt to lock on and track it.

Acquisition Mode

Acquisition Mode is an automatic transition layer between Search or Boresight modes and Track mode. A Range Gate Strobe will move from the bottom of the display toward the selected target symbol as the system attempts to lock on and track the target. If successful, the radar will then automatically transition to Track mode.

Track Mode

Once a target is being successfully tracked, Track mode will display angle and range tracking information and the system will automatically keep the antenna pointed towards the target. As long as the lock is maintained, a radar-guided missile can be fired at the target. A large Range Rate Circle will appear in the display with a small break in its perimeter, known as the Vc Gap . The orientation of this gap indicates the rate of closure to the target. When the gap is in the 12 o'clock position, this signals the distance to the target is constant. A clockwise rotation of the gap designates decreasing range, and a counterclockwise rotation an increase. The actual position of the Vc Gap indicates the following:

Ground Map Mode

In Ground Map mode, the radar will scan the terrain ahead with a PPI sweep, tracing an arc across the face of the scope. Significant terrain contours and any ground targets will be displayed.

Terrain Avoidance Mode

The simplest radar mode, Terrain Avoidance displays any obstacles that lie ahead parallel to the aircraft's current flight path with a clearance plane elevation fixed at 500 feet below. If an object appears in the scope, climbing until it disappears will avoid it.

Combat Basics

Strike Fighters Gold is a flight simulation, and by nature includes Air-to-Air and Air-to-Ground combat. This section covers the basic knowledge guiding air combat, a necessity for any successful pilot.

Rules of Thumb

There are a few basic rules of thumb that all fighter pilots live by in combat, especially when in gun range. Learn them well, as they may just save your virtual life! The first is "Lose sight, lose the fight." In simple terms, this means always keep your eye on enemy aircraft and constantly analyze their position and orientation relative to yours. The moment you lose sight of a bandit you can no longer tell how it is maneuvering or if it is threatening your aircraft. Make it your first priority to re-establish sight of it!

A second basic maxim of ACM (Air Combat Maneuvering) is "Speed is life!" This rule holds true for a couple of reasons, but an important one is that speed can easily be cashed in for altitude. Similarly, a high flying aircraft can dive to pick up speed and for this reason "Altitude is life!" is also a popular saying. This trade-off between altitude and speed is known as "energy." A fighter at a high speed and high altitude is almost untouchable (it has very high energy and therefore lots of options), a low flying fast aircraft or a lower speed fighter with altitude both have medium energy (each have a few different options) whereas a low flying, low speed aircraft that has used up all its "E" has next to no options. Needless to say, energy management and keeping your options open is critical in a dogfight.

A third basic tip is not to fly straight and level in combat. Keeping a constant course makes you easy prey and is very predictable. Also, learn to think in three dimensions: not only do aircraft move about on a horizontal plane, but they can also use the vertical one very effectively. By using vertical maneuvers, a pilot can easily turn the tables on an opponent that insists on making only flat turns.

Using the Lift Vector

As explained in the Flight Basics section, the lift vector is the direction in which lift is applied on an airframe. Lift as a force is not only used to counter gravity, but it can also be used in maneuvers. Since lift is effectively "pushing" your aircraft in a known and constant direction, you can use that force to your advantage. Rolling an aircraft so that your lift vector points towards your target will force you to accelerate towards it; subsequently increasing pitch by pulling back on the stick will then increase your turn rate toward it (subject to certain limits, see below). When following an enemy aircraft, keeping your lift vector on the same plane of motion as that of your foe can help you turn inside of it and set up a kill.

G Forces

G force is the measurement of inertial loads, with 1G being the normal force of gravity. The higher an aircraft's velocity, the easier it is to increase G loading during maneuvers. G forces act on both pilots and aircraft, sometimes with negative consequences. Sustained high positive Gs send blood rushing out of a pilot's head, and can lead to increasingly grayed vision and eventually unconsciousness, known as "black out." Human beings are much less tolerant to negative Gs, which force blood into the head and can lead to a condition known as "red out" as vessels in the eye become engorged and vision is negatively affected. In order to recover from either black out or red out, G loads must be reduced to allow more normal blood flow to the brain and eyes. Aircraft can also be damaged if Gs are allowed to climb too high, even if only for a moment. As airspeed decreases the ability to initiate and hold G forces is reduced.

Turn Rate versus Turn Radius

Turn Radius is the size of a circle flown by an aircraft as measured from the center and decreases as velocity is reduced. While this is an important figure, the fighter that can turn the tightest isn't always at an advantage in a dogfight. Turn Rate - the speed with which the nose changes heading, measured in degrees per second - is even more significant. Since firing air-to-air weapons is generally done from the forward aspect of a fighter, the rate at which the nose can be brought to bear onto a target is critical. Thus, even though an aircraft may be creating a wider circle than its opponent, if it can travel around that circle more quickly, it is at an advantage. At any given velocity and G load, an aircraft has a specific turn radius and turn rate.

Corner Velocity

At high speeds turn rate is limited by the amount of G forces that can be sustained. As speed lowers and maximum Gs are maintained, turn rate increases. This seems ideal but, as mentioned above, as airspeed is reduced, so is the ability to hold Gs. The slowest speed at which maximum Gs can be applied is known as Corner Velocity and is the point at which an aircraft has the maximum instantaneous turn rate. Corner Velocity will vary between aircraft and is important to learn, as this is where a fighter will perform at its best. Unfortunately, most aircraft don't have enough thrust to maintain this velocity under maximum G loads and will find that their turn rate decays as their speed and hence Gs decrease. The maximum constant velocity that can be held with the highest steady G load is known as Sustained Corner Velocity and results in a steady rate of turn. One of the reasons energy management is critical is so that pilots can temporarily achieve corner velocities above the sustained rate and as close as possible to the instantaneous turn rate.

Basic Maneuvers

Immelman Turn

Named after Max Immelman, a German pilot during the dawn of aerial combat, WWI, this move involves pulling back on the stick and climbing through the vertical as part of a half loop. At the top of the loop, when the aircraft is inverted, the pilot rolls through 180 degrees to be right side up and facing the opposite direction from where the maneuver was started. The aircraft finishes at a higher altitude than it began, with a resultant loss in velocity. Useful for changing direction quickly, it can be dangerous when pursued closely since an opponent can easily achieve a firing solution when the plane is slow towards the top of the loop. Insufficient speed before entering an Immelman will result in a stall.

Spit-S

The Split-S can be considered the counterpart to the Immelman, since it is also a half loop. However, in this case the pilot rolls inverted before pulling back on the stick and then performs the half loop while descending. The end result is a 180-degree change in direction, a loss of altitude and a gain in airspeed. It is critical that it be performed with sufficient height to avoid flying into the ground. Mainly a defensive move, it can also be used if an opponent flies beneath you in the opposite direction. The half roll is executed before the loop since a pilot can withstand many more positive Gs than negative ones.

Break Turn

A break turn is used to quickly defeat a guns solution by a hostile aircraft that is rapidly closing from the rear aspect. It is executed by banking either right or left and pulling back on the stick rapidly so as to carve a tight turn and force an overshoot. It is imperative to turn into the attacker and not away from him, as the latter would give him an even easier shot. A break turn is best performed level with the horizon or lower to avoid a pop-up in altitude and loss of speed, thus unwittingly becoming an even easier target. Break turns are most effective when the pursuer has a significant speed advantage and therefore cannot pull as tight a turn.

High and Low Yo-Yo

A Yo-Yo, whether high or low, is a very effective offensive tactic against an opponent that insists on making flat turns. Its principle advantage is that by using the vertical plane an aggressor can create an offset path of pursuit and thus gain an angle on the enemy. The Yo-Yo is performed by rolling outside of the horizontal plane during a turn and pitching up or down, followed by an opposite roll back into the original turn. The end result is that you will have effectively "cut the corner" of the flat circle and will find yourself more squarely on your opponent's rear. The High Yo-Yo should be used when you have energy to spare and are above Corner Velocity, while the Low Yo-Yo should be used when you need to gain speed to reach your instantaneous turn rate.

Using the Gunsight

The F-100 Super Sabre and F-4 Phantom II are equipped with a Lead Computing Optical Sight System (LCOSS). This gunsight can be operated in three modes: CAGE, A/A and A/G.

In CAGE mode the gunsight reticle is fixed along the radar boresight line of the aircraft. When selecting Air-to-Air missiles the LCOSS automatically goes into CAGE mode.

In A/A (Air-to-Air) mode and with the cannon selected, the gunsight is placed in lead computing mode with the reticle position governed by the sight gyro and radar range. By these means the sight effectively predicts where cannon fire will go, given your current G load and range to a selected target. Place the predictor sight onto the target and fire guns to hit it. If no air target is selected, the sight defaults to a range of 1,000 feet.

In A/G (Air-to-Ground) mode, the sight is manually depressible to 245 mil below the fuselage line.

In F-4 Phantom II, the LCOSS also has roll tabs and a range bar. The range bar moves from roughly the 1 o'clock position (delineating maximum range) to the 6 o'clock (showing minimum range) and reflects different distances according to the weapon selected.

Using Air-to-Air Missiles

Aerial combat during the Korean War and even into the early 1960s was still very much a visual affair. While bogeys could be plotted on airborne radar at quite a distance, fire control technologies that existed were quite primitive by today's standards and downright unreliable. Heat-seeking missiles had to be fired within very specific parameters, and cannon still proved very effective for in-close fighting. This lesson is evident by the case of the F-4 Phantom II, which began life without any onboard cannon and was overly reliant on missiles; it later had gun pods fitted, and finally had a 20mm Vulcan cannon installed in the nose by 1967.

On board fire control radars of the 1960s could only lock onto one enemy at a time, and radar-homing missiles had to "ride the beam" to their targets, not having their own independent guidance systems.

Missile technology evolved quickly, though, and Air-to-Air capabilities steadily increased throughout the decade.

Heat-Seeking Missiles

Many aircraft can only be equipped with heat-seeking missiles and don't have the capability to fire radar-guided ones. Infrared (IR) missiles track the heat signature produced by a jet's exhaust. To be used successfully, they have to be fired from the rear aspect of the target; otherwise, they will not pick up a heat source properly. Early versions were sometimes fooled by other objects that radiate heat against the sky like the sun or clouds. Even the most modern heat-seeking missiles can still be fooled by flares.

When AIM-9 missiles are selected, you will hear a constant medium pitched tone known as a "growl." As the IR seeker head detects and locks onto a source, this pitch will change to a high tone. The sensor of a heat-seeking missile has a limited field of view, so in order to "get a tone," the target has to be roughly within your gunsight (it will have automatically switched to CAGE mode) and within range of the seeker head.

Early Sidewinder missiles could not be fired when pulling too many Gs. Likewise, a missile also has maneuverability limits, and if it is fired from too close a range or too high an aspect angle, it may not be able to turn sharply enough to engage the target. The best way to ensure your missile hits is to have a constant tone and to be following the target in pure pursuit without a high G load. The maneuverability and/or maximum range of Sidewinder missiles improves with each variant.

If your target is too close to use AIM-9 missiles, use your guns!

Radar-Guided Missiles

Radar-homing missiles (RHM) rely on information from a radar signature to find their way to a target. They operate at a much greater range than heat-seeking missiles and can be fired from any aspect, meaning you do not have to maneuver to the rear of a bandit. While in flight, they require radar information constantly provided by the aircraft from which they were launched. Unlike a heat-seeking missile, which is "fire and forget", their guidance depends on a radar lock being kept by your radar and the target being illuminated. At longer ranges this can be defeated by enemy radar jamming, and only one target can be illuminated at a time. Hostile aircraft can also employ chaff defensively to defeat radar locks.

For information on how to achieve a radar lock using your radar scope, view the Using the Radar section of this manual.

Using Air-to-Ground Missiles

There are three types of air-to-ground guided missiles available in Strike Fighters Gold: 1) Anti-radiation missile (ARM), such as AGM-45 Shrike and AGM-78 Standard ARM, 2) Electro-Optical (EO) weapons, including AGM-65 Maverick, and 3) Laser-guided bombs (LGB), such as GBU-10/12 Paveway I series bombs.

Anti-Radiation Missile (ARM)

Anti-radiation seeker head homes in on the emitted signal from enemy ground radar installation and is completely self-guided. To use these missiles, simply point the aircraft toward a known enemy radar, and fire. If the enemy radar is within the range, it'll automatically lock on and guide itself to the target.

Electro-Optical (EO) Guided Weapon

EO weapons are guided using small TV camera located on the nose of the weapon. Once EO-guided weapon is selected, the radarscope will display the image seen by the EO seeker of the selected weapon. To use EO-guided weapon, simply select the visual target (by hitting Select Ground Target key), and if the target is in seeker range and in seeker field-of-view, the weapon will automatically lock-on to the selected target. The radar display will show the weapon seeker tracking the target, and the Heads-Up-Display will display a symbol indicating where the target is located. Once fired, EO-guided weapons are "fire-and-forget", and the attacking aircraft may immediately switch target for next weapon without losing guidance.

Laser-Guided Bomb (LGB), No Designator

Laser-Guided weapons are guided toward reflection of laser dot "painted" on the target by a laser designator. If the aircraft is not carrying the laser designator, then it cannot select target on its own - it can only attack primary targets, which are always being designated by other laser designators (such as Special Forces on the ground). Since the target is being lased by other units, the attacking aircraft does not have to maintain target, and can immediately switch to another target to attack using other weapons.

Laser-Guided Bomb (LGB), with Designator (AVQ-23 Laser Designator Pod)

If the aircraft is carrying a laser designator (such as AVQ-23 Laser Designator Pod), the radarscope will display image similar to EO-guided weapon, and the target may be selected similarly using the Select Ground Target key. If the target is in designator range and in designator field-of-view, the display will show the designator tracking the target. Laser-guided weapons fired this way are not "fire-and-forget", and the target must remain designated until the weapon impact. Switching visual target while bomb is still in flight will cause the bomb to lose its target and miss.

Player Aircraft

F-100 Super Sabre

Year: 1956
Role: Fighter
Max Speed: 864 mph
Max G-loading: 7.33g
Weapons: Four 20mm M-39 cannon (200 rpg); external load up to 7,040 lb; up to 4 AIM-9 Sidewinder heat-seeking missiles.

The single-seat F-100 Super Sabre evolved from the famed F-86 Sabre, legendary in combat against the Soviet MiG-15s of the Korean War. The first of the "Century Series" of fighters, its design dates back to 1949 and is often considered the first production aircraft capable of supersonic speeds in level flight. It was originally known as the Sabre 45 because of the 45-degree angle of its low mounted sweptback wings. By 1954 the F-100A was entering squadron service to become the standard USAF front line fighter. Powered by a Pratt and Whitney J57 turbojet, the Super Sabre was originally designed for daytime aerial superiority, but was later tasked as a fighter-bomber and saw extensive use with the USAF in South-East Asia. The F-100D was the definitive version optimized for the Air-to-Ground strike role, capable of carrying an increased weapons load. More versions of the "D" were built than all other models combined before production was halted in 1959. The Super Sabre continued to serve well into the late 1970s.

A-4 Skyhawk

Year: 1956
Role: Attack
Max Speed: 595 mph
Max G loading: 6g
Weapons: Two 20mm Mk.12 cannons (100 rpg); external load up to 8,200 lb; two AIM-9 Sidewinder heat-seeking missiles on A-4E and A-4F models.

The A-4 Skyhawk was designed to meet a US Navy requirement for a carrier-borne medium attack aircraft in the early 1950s. The Navy's specification called for an aircraft weight of approximately 30,000-lbs but Edward Heinemann submitted a design that was remarkably light, weighing only half the specified amount. At first, the Navy couldn't believe such a light aircraft could meet the range and payload specifications, but this small jet not only met all the requirements, it also proved to be extremely versatile and effective. The A-4, also known as "Heinemann's Hotrod" and the "Bantam Bomber", began entering service in 1956 and remained in frontline service with the Navy and Marines into the 90's, seeing a number of engine and avionics revisions. It has a conventional cruciform tail section and a delta shaped wing with distinctive air intakes close to the canopy glass. The A-4 Skyhawk can carry a wide variety of external weapons on two wing-mounted pylons and one under the fuselage, and is as maneuverable as many jet fighters of the day.

F-4 Phantom II

The twin-engine, two-seat F-4 Phantom II was originally designed as a fleet-defense interceptor for the US Navy and can fly at over Mach 2. Armed with an advanced radar and missiles, it was one of the first fighter aircraft not to carry an internal cannon, though operational experience saw this redressed in subsequent versions. Its performance proved so successful that, in an almost unprecedented move, the USAF adopted the Phantom II straight from the Navy's design. It is immediately identifiable by the drooping horizontal tail mounted high on the aft fuselage to avoid hot jet exhaust, and by its conspicuous wings with positive dihedral angle outer panels. Widely used as a ground attack aircraft as well as an air superiority fighter, it could carry up to 16,000-lbs of assorted external stores, including eight Air-to-Air missiles. Known for its brute power, the Phantom II saw extensive use in South-East Asia, and with constant upgrades to avionics, it is still present in many modern air forces today.

Non-Player Aircraft

Enemy Fighters

MiG-17 "Fresco"
The MiG-17 is an improved successor to the highly successful MiG-15 of the Korean War. Although its top speed remains subsonic in level flight, it is considered an excellent dogfighter and is highly maneuverable at low speed and low altitude. Deliveries of the MiG-17 first began in 1952 with total Soviet production estimated at 6,000 units, with others made under license by China and Poland. The MiG-17's mixed armament of two 23mm and 37mm cannons have low rate of fire, and are best suited for attacking heavy bombers.

MiG-19 "Farmer"
First revealed to the world in 1955, the MiG-19 is the first supersonic fighter to enter service with the Soviet Air Force. It is widely viewed as the Soviet counterpart to the F-100 Super Sabre or even better. Despite having a general shape similar to the earlier MiGs, the MiG-19 is actually a twin-engine design that produces a much higher thrust-to-weight ratio and rate of climb than its Western opposite. However, despite its high performance, it is considered very difficult airplane to fly and was not popular among pilots. The MiG-19S "Farmer-C" is armed with three powerful 30mm cannons.

MiG-21 "Fishbed"
With a production of more than 11,000 units, the MiG-21 is one of the most successful fighter designs in history and has been built in greater numbers than any other military aircraft since WWII. The delta wing, single-engine "Fishbed" is capable of flying at over twice the speed of sound and its many variants have been widely exported - some still in use today. The single-seat MiG-21F "Fishbed-C" entered service in 1960 carrying only two heat-seeking missiles and a single 30mm cannon with 30 rounds, but later versions can carry up to 4 heat-seeking missiles and rapid-firing GSH-23L twin 23mm cannon.

Su-7 "Fitter"
The Su-7 started its life as a tactical fighter, but the program was re-directed by the Soviet Air Force to produce a fighter-bomber instead. The Su-7B, the single-seat ground-attack version entered service in 1961. The Su-7 enjoys excellent handling and a robust simplicity, noted for its high penetration speed and low-level stability. Despite a poor combat radius and a relatively light external weapons load for a plane of its size, it was well liked by its pilots. The Su-7 is armed with two hard-hitting 30mm cannons, and various external stores such as bombs, rocket pods, and gun pods.

Other Enemy Aircraft

Il-28 "Beagle"
The Il-28 was the first successful Soviet bomber to be powered by jet engines. It entered service in 1950, and was the primary tactical bomber of Soviet Air Force throughout most the Cold War. The Il-28 was a simple and robust aircraft - easy to build, maintain, and fly. The Il-28 has an internal bomb bay for up to 6,600 lb of bombs, and it is armed with two 23-mm cannon fixed in the nose and two 23-mm cannon in a tail turret. Its production is estimated at over 3,000 units; over half went to Warsaw Pact forces and other countries. It served with the Soviet Air Force well into the 1980s, and Chinese copies are still in service today.

Tu-22 "Blinder"
First unveiled in 1961, the appearance of the Tu-22 bomber that could reach Mach 1.5 shocked the West. It is immediately recognizable by its afterburning twin engines mounted high and above the rear fuselage, on either side of the vertical tail. It has sophisticated electronics and a capability of up to 10 tons of freefall bombs, or variants can be equipped with long-range cruise missiles.

An-12 "Cub"
The An-12 is a basic four-engine propeller driven cargo aircraft with a defended rear turret. It has a maximum payload of 20 tons and is used in different variants to carry troops, armored fighting vehicles, or supplies and has even been modified for electronic warfare and electronic intelligence gathering purposes.

Friendly Aircraft

B-57 Canberra
The B-57 light tactical bomber is based on a British design equipped with two US Wright J65 engines, first flying in 1953. The B-57B has a two seat tandem fighter-style cockpit, with 8 .50 cal. or four 20mm guns in the wings along with dive brakes. It employs an unusual rotating bomb bay door system in which ordnance is stored on the doors themselves, and also has wing pylons available. The B-57's maximum speed is a good 100 mhp faster than the IL-28 Beagle at sea level, and was pressed into service in South-East Asia as it neared the end of its operational life. Its proven effectiveness there extended its days and led to variants for various roles, including as a night intruder and for high-altitude reconnaissance.

Player Weapons

Air-to-Air

Cannon

20mm Mk. 12
The Mk. 12 is the standard cannon armament used by the US Navy. It has a muzzle velocity of 1,010 m/sec and a rate of fire of 1,200 rounds per minute. It has a reputation for being inaccurate and unreliable, yet is used on almost all US Navy fighter and attack aircraft, including the A-4 Skyhawk.

20mm M39
The M39 is a twin-revolver type cannon developed for the US Air Force. It has a muzzle velocity of 1,030 m/sec and a rate of fire of 1,700 rpm. It is found on the F-100 Super Sabre.

20mm M61 (SUU-23/A Gunpod)
The M61 Vulcan is a six-barreled, externally powered, rotary cannon firing at rate of 6,000 rpm. It is the current standard cannon armament for the US Air Force, and is mounted internally on the F-4E version of the Phantom II. The M61 Vulcan cannon is also available as an external gun pod, in the form of SUU-23/A gun pod.

Heat-Seeking Missiles

AIM-9B Sidewinder
The Infra-red (IR) homing AIM-9 missile is one of the most widely used Air-to-Air missiles in the world, with over 110,000 produced. It is simple, easy to use, and reliable; it is employed by a wide variety of Western fixed wing combat aircraft and helicopters. The performance of the AIM-9B, the first production version entering service in 1956, was unsatisfactory. Its launch load factor is limited to 2G, and its seeker head can be easily be fooled and locks onto false heat signatures. It has a range limit of 2.6 miles, and the missile is unable to follow MiGs turning at more than 5 G's. To score hits, the launching aircraft has to be properly positioned with great attention paid to closure rate and range.

AIM-9D Sidewinder
The AIM-9D, entering service in 1966, is a much superior version of the Sidewinder developed and used by the US Navy. It has a new seeker head and new motor for vastly improved range and performance.

AIM-9E Sidewinder
The AIM-9E is a slightly improved version of the Sidewinder used by the US Air Force. Its improvements over the original AIM-9B are limited - it has a new seeker head, but leaves warhead, fuse and motor untouched. AIM-9E's performance is well below that of US Navy's AIM-9D, despite the fact that AIM-9E entered service over a year later in 1967.

AIM-9E-2 Sidewinder
The AIM-9E-2 is a version of AIM-9E with a smoke reducing motor, making it less visible at launch. Otherwise, it has the same performance as the AIM-9E.

AIM-9G Sidewinder
The AIM-9G is a development of the AIM-9D Sidewinder used by the US Navy. First introduced in 1968, it has a more sensitive seeker head and much greater maneuvering capability, making it much more effective in aerial combat.

AIM-9H Sidewinder
The AIM-9H, entering service in 1970, is the next development of the US Navy's Sidewinder series, with improved reliability.

AIM-9J Sidewinder
The US Air Force continued to develop its own Sidewinder series independently, and AIM-9J, introduced in 1972, is their next version with improved reliability over the E model. Its performance is still below that of the Navy's AIM-9H Sidewinder.

AIM-9L Sidewinder
The AIM-9L, introduced in 1978 after being developed jointly by the US Air Force and the Navy, represents a major advance in the Sidewinder development - it is the first "all-aspect" Sidewinder missile, with ability to attack target from all angles, even from head-on. The pilots no longer have to maneuver behind the target for a missile shot, resulting in dramatic improvement in the effectiveness over the earlier models.

AIM-9M Sidewinder
Improved version of AIM-9 entering service in 1984 with reduced smoke motor.

Radar-Guided Missiles

AIM-7D Sparrow
The AIM-7 Sparrow III missile, first introduced in 1959, is a medium range air-to-air missiles with semi-active radar guidance. They are capable of attacking targets from all aspects, with maximum range of up to 20 miles but varying greatly according to target aspect and closing speeds. The launching aircraft must maintain radar lock and illuminate the target throughout the missile's entire flight for it to guide properly.

AIM-7E Sparrow
The AIM-7E, entering service in 1965, is the improved version of the Sparrow. It uses a new propulsion system, giving it better range and performance.

AIM-7E-2 Sparrow
The AIM-7E-2 Sparrow, so called "Dogfight Sparrow", is an AIM-7E missile modified for use in the short minimum-range and high-G firing required in dogfights. The Dogfight Sparrow entered service in 1970.

AIM-7F Sparrow
Improved version of Sparrow introduced in 1976, the AIM-7F has dual-stage rocket motor for longer range, solid-state electronics for improved reliability, and a larger warhead for increased lethality.

AIM-7M Sparrow
Much improved version of AIM-7 entering service in 1982 with higher reliability.

Air-to-Ground

Anti-Radiation Missiles (ARM)

AGM-45A Shrike
Entering service with the US Navy in 1965 and then with the US Air Force, the AGM-45A Shrike is a weapon used to destroy enemy Surface-to-Air Missile (SAM) sites. Its anti-radiation seeker head homes in on the emitted signal from a ground radar installation and is completely self-guided. When a SAM site turns off its radar, the AGM-45A will lose its lock and does not have the capability to continue to target. Its maximum range is roughly 10 miles.

AGM-45B Shrike
Improved version of the original AGM-45A Shrike, with a new propulsion system giving it a much better range (about 28 miles). The AIM-45B began entering service in 1970.

AGM-78B Standard ARM
Produced in 1968, the AGM-78B is a anti-radiation missile based on US Navy's Standard Surface-to-Air Missile body. Its seeker head has a much greater overall field of view, and it has the capability to track many different frequencies of radar. It also has a basic memory circuit allowing it to continue to target even after the radar source stops emitting. Its maximum range is roughly 56 miles.

Electro-Optical (EO) Guided Weapons

AGM-65A Maverick
The AGM-65A Maverick is an electro-optically guided air-to-ground missile designed primarily for close-air-support.  It provides stand-off capability against a wide variety of tactical targets, including tanks, air defenses, and other vehicles. The AGM-65A entered service in 1972, and its TV guidance system has maximum lock-on range of about 6 miles.

AGM-65B Maverick
The AGM-65B is an improved Maverick, with a scene magnification capability allowing it to lock-on to a target at greater range (about 12 miles).

GBU-8/B HOBOS
The GBU-8/B HOBOS (Homing Bomb System) is an electro-optically guided bomb developed by the US Air Force. Entering service in 1969, it is essentially a standard Mk.84 2,000-lb bomb casing fitted with a TV guidance and control kit. The TV guidance has range of about 3 miles, but since the bomb is not powered and relies on the gravity, the maximum release range varies depending on the altitude.

Mk. 1 Mod 0 Walleye I
The Walleye series of bombs are Electro-optically guided bombs developed by the US Navy. The Mk. 1 Mod 0 Walleye I entered service in 1967, and its TV guidance has lock-on range of approximately 3 miles. The bomb has no propulsion unit, and the maximum range varies depending on the release altitude.

Mk. 5 Mod 4 Walleye II
The Mk. 5 Mod 4 Walleye II, entering service in 1974, is a larger warhead version of the Walleye. It also features an improved TV guidance unit, giving it an increased lock-on range of about 4.5 miles.

Laser-Guided Bombs (LGB)

GBU-10/B Paveway I
The Paveway series of bombs are laser-guided bombs developed by the US Air Force. The GBU-10/B Paveway I, entering service in 1968, is a standard Mk.84 2,000-lb bomb casing fitted with a laser-guidance and control kit, and it has lock-on range of about 4.5 miles. Like other guided bombs, Paveway LGB's are not powered, and its maximum range varies depending on the release altitude.

GBU-10C/B Paveway II
The GBU-10C/B Paveway II is an improved version entering service in 1975. It has an enhanced seeker head with higher reliability and increased range of about 5 miles.

GBU-12/B Paveway I
The GBU-12/B Paveway I is a version of Paveway I based on a smaller Mk.82 500-lb bomb. Entering service in 1968, it has the same seeker head as the GBU-10/B, and it has the same range of 4.5 miles.

GBU-12B/B Paveway II
The GBU-12B/B Paveway II has the improved seeker head of GBU-10C/B mated with a smaller Mk.82 500-lb bomb. It entered service in 1975 and has range of 5 miles.

Unguided Rockets

LAU-3/A Rocket Pod
The LAU-3/A Rocket Pod carries nineteen 2.75" unguided rockets with explosive warheads. The pods are usually mounted in tandem on under-wing pylons.

LAU-10/A Rocket Pod
The LAU-10/A Rocket Pod carries four 5" unguided rockets with explosive warheads. The pods are also usually mounted in tandem.

Unguided Bombs

M-117 Bomb
The M-117 bomb is a conventional general-purpose bomb weighting 750 lb.

Mk.80 Series
The Mk.80 Series of bombs (Mk.81, 82, 83, 84) are the standard low-drag, general- purpose bombs.

Mk.82 Snakeye Retarded Bomb
The Mk.82 Snakeye is a 500-lb bomb that is equipped with special fins that open up and extend behind the bomb like an umbrella, slowing it down dramatically. Used in low-altitude level bombing, this allows the launching aircraft time to be clear of the bomb's blast radius.

Mk.20 Rockeye Cluster Bomb
The Mk.20 Rockeye Cluster bomb is a free fall weapon that carries hundreds of small bomblets that can be spread across a great area upon release. Individual bomblet has shape charged warhead that are set to explode on impact. The Rockeye is effective against both hard targets like armor and soft skinned targets.

BLU-1 Napalm
The BLU-1 Napalm bomb is an aluminum canister filled with fuel gel. Tumbling end over end when released, as it strikes a target or the ground the container will rupture, spreading highly flammable napalm that sticks to most structures. Upon impact, fuses rapidly ignite the fuel gel. Napalm is effective against personnel, light structures and vehicles.

Campaign Background

Burning Sands Campaign

Two proud nations, one oil rich desert, one very old conflict...

April 1919: Mazadran Desert
During an expedition hosted by the Amir of Dhimar, geologists from the Northern Oil Company discover oil leaking to the surface in a place called the Valley of Kerman. It is desolate landscape in the Al'Samara region lying very near the eastern border of the Kingdom of Dhimar and the western border of the Empire of Paran. This border region has always been in dispute, and the Amir claims the inhospitable region as a territory of Dhimar, beginning drilling operations with Western-backed capital.

August 1919: Mazadran Desert
The Shah of Paran disputes the Dhimari claim to the newly discovered Mazadran Oil Fields. Shah Mushani sends Parani cavalry cross the rocky sands of the Mazadran Desert and, after fierce fighting, the battle for the Valley of Kerman ends with the retreat of the Parani army. It marks the beginning of a long conflict between the two nations.

September 1933: Mazadran Desert
After over a decade of fighting, Shah Mushani has grown old and no longer has the will to continue the long-running and unsuccessful war against Dhimar. Over the years, numerous attempts have been made to claim the Mazadran Oil Fields though none have been successful. The entrenched Dhimari, the rugged Valley of Kerman, and the desert itself have kept victory from Paran. The Mazadran Oil Field war gradually slows, then stops, resulting in an uneasy peace.

December 1956: Mazadran Desert
The Kingdom of Dhimar has grown to become a very wealthy and economically powerful nation by selling the oil produced at the Mazadran Oil Fields. There is an increasing feeling of resentment in the Empire of Paran against Dhimar because of the economic disparity between the two neighboring nations.

February 1957: Kurzah, Paran
Pro-reclamation forces led by Halani Komar, and backed by a powerful benefactor, the Soviet Union, successfully stage a bloody coup against the Mushani regime. Once in power, Shah Komar begins secretly building up military forces, using the newest and best Soviet hardware that he is permitted to buy. His goal is to return the Empire of Paran to its former glory by defeating its longtime enemy, the Dhimari, and to reclaim the Mazadran Oil Fields.

September 1957: Muthala, Dhimar
King Husani Al'Galbhi of Dhimar watches with growing concern as reports come in of brand new MiG-17 jet fighters, IL-28 bombers, T-54 tanks and BTR-50 armored personnel carriers seen at new military bases throughout Paran. Tensions increase as Husani approaches the United States for military assistance, and begins to place F-100 jet fighters and M-48 tanks into service to counter the threat.

May 1959: Mosak, Dhimar
Two years of increasing tensions between Paran and Dhimar have culminated in terrorist bombings in the border city of Mosak, located in the Basari River delta. War appears imminent, as Parani forces mass near the border at Maqazad and Riqdur.

June 1959: Mosak, Dhimar
Mosak has been subjected to a blockade by Parani naval forces. Paran now claims ownership of the entire Bay of Basari, and has stopped all Dhimari shipping into and out of Mosak.

June 1959: Muthala, Dhimar
Prince Fa'ad of Dhimar, realizing that their armed forces are still under manned and under equipped, recommends King Husani to institute an emergency buildup of air power. Intrigued and impressed by the legendary Flying Tigers of World War II, he proceeds to form several Special Operations Wings (Mercenary), and fills his new squadrons with foreign pilots who are willing to fly and fight for money and glory.

July 1959: Washington, D.C.
In order to prevent the Soviet-backed Paran from gaining the strategically important oil fields, the United States decides to dispatch military forces to assist Dhimar in the current crisis. The USS Saratoga heads for the region and a squadron of A-4 Skyhawks lands to take up temporary duty at Shaqaz, Dhimar. Meanwhile, F-100 Super Sabres of the 354thTFW, USAF arrive at Muthala, Dhimar, to take a defensive position there.

September 1959: Mazadran Oil Field
Large formations of Parani tanks are seen crossing the Al'Samara River and heading towards the Valley of Kerman and the industrial oil center at Al'Qatan. War has returned to the desert...

Additional Campaigns

War in the desert continues...

Operation: Quick Sand
December 1966:
For years, U.N.-backed ceasefire has kept the peace between Empire of Paran and Kingdom of Dhimar. Shah Komar of Paran spent these years secretly rebuilding his military and meticulously planning revenge against Dhimar. His deceptive measures to hide his activities were successful, and he catches U.N. and Dhimari forces by surprise when he launches his well-planned attacks. U.S. reacts swiftly, deploying units to defend the Kingdom.

Operation: Rattle Snake
August 1968:
Despite the U.N. backed ceasefire, Empire of Paran continues to support terrorists engaged in guerrilla warfare against Kingdom of Dhimar. In response to repeated guerrilla attacks, Dhimari aircraft violates Parani airspace and destroy terrorist camps just across the border. Paran retaliates with intense artillery fire against Dhimari positions. The exchange escalates into a full-scale war, and U.S. once again deploys units to defend the Kingdom.

Operation: Desert Thunder
September 1972:
After years of uneasy truce and massive troop buildup on both sides, hostility between the Empire of Paran and Kingdom of Dhimar reaches a fever pitch. Once again, war appears imminent. Shah Komar of Paran expels U.N. peacekeeping force from the region, closes the ports of Mosak to Dhimari shipping, and masses his troops at the border. In response, King Husani of Dhimar, with support of the United States, makes a bold move: a pre-emptive strike.

Default Key Commands

The game has a default set of key commands. You can alter them by opening the Options Screen. Click the green aircraft icon in the upper left corner of the screen, then select Control. The default control list is loaded by default, but you can click Customize to change the key mappings. If you choose to customize, a new *.INI file will be saved in the Controls subdirectory under the main game folder.

In-flight Keyboard Commands

View Commands

Note: In all interior views, you can move the mouse to pan the view up, down, left and right.

Flight Control Commands

You can control your aircraft by using a joystick or the keyboard. If you have a programmable joystick, many of the following functions can be assigned to your joystick buttons and/or wheels.

Note that the aircraft takes a few seconds to respond to your flight commands. Be careful not to over steer, or you may quickly get into trouble.

Weapons Commands

Radar Commands

Visual Targeting Commands

Misc. Commands
